Gravity Louvers
|
This louvers serves as a not-return damper and can be used at the exit terminal ducts and fans. Certain pressure is usually required before the damper opens to expel; the exhause air, which ensures the elimination of backflow.
The blades are made from light weight aluminium sheets, while the frame is made from extruded aluminium.
|
 |

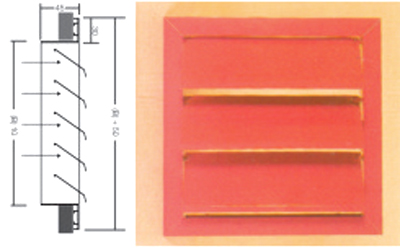

The GL is a wall mounted device that is composed
of a set horizontally mounted blades that are normally closed and
are free to rotate about their horizontal axis.

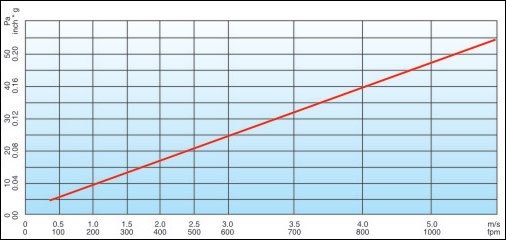

Note: All dimensions are in mm with tolerance of # 2.5mm unless otherwise specified.
 |
Free area ratio = 0.81 for 100% open blades.
To calculate the air flow rate
0.81 x A(mm) x face velocity (fpm) CFM = ------------------------------------------ 144
0.81 x A(mm) x B(mm) x face velocity (m/s) L/S = ----------------------------------------------------- 1000 |
|
|
|
